Wheel Spacers (pair)

Product Details

Achieve the perfect flush look and widen your track width for better handling with Rennline's Wheel Spacers. Whether you are correcting wheel offset for aftermarket wheels or clearing a big brake kit, our spacers are precision-machined to ensure a safe, vibration-free fit. These spacers are available in three specific configurations to cover almost every Porsche 5x130 application. Please read the "Technical Specifications" below carefully to determine which style fits your specific hub.

• Precision Engineering: Machined from high-strength 6061-T6 Aluminum
• Corrosion Resistant: Hard anodized black finish with laser-etched Rennline logo
• Hub-Centric Fitment: Specific designs to maintain the factory hub bore (71.6mm) on all applicable models
• Sold as a pair
• Note: Longer wheel bolts or studs are required for proper thread engagement and sold separately
• Need a complete solution? We offer "Spacer + Bolt" bundles:
  • Click Here for Kit LS27: Fits 996 | 997 | 991 | 986 | 987 | 981 models
  • Click Here for Kit LS29: Fits 992 | 718 | 9Y0 Cayenne models
• Buying bolts separately? Ensure you order the correct Extended Wheel Bolts for your spacer size

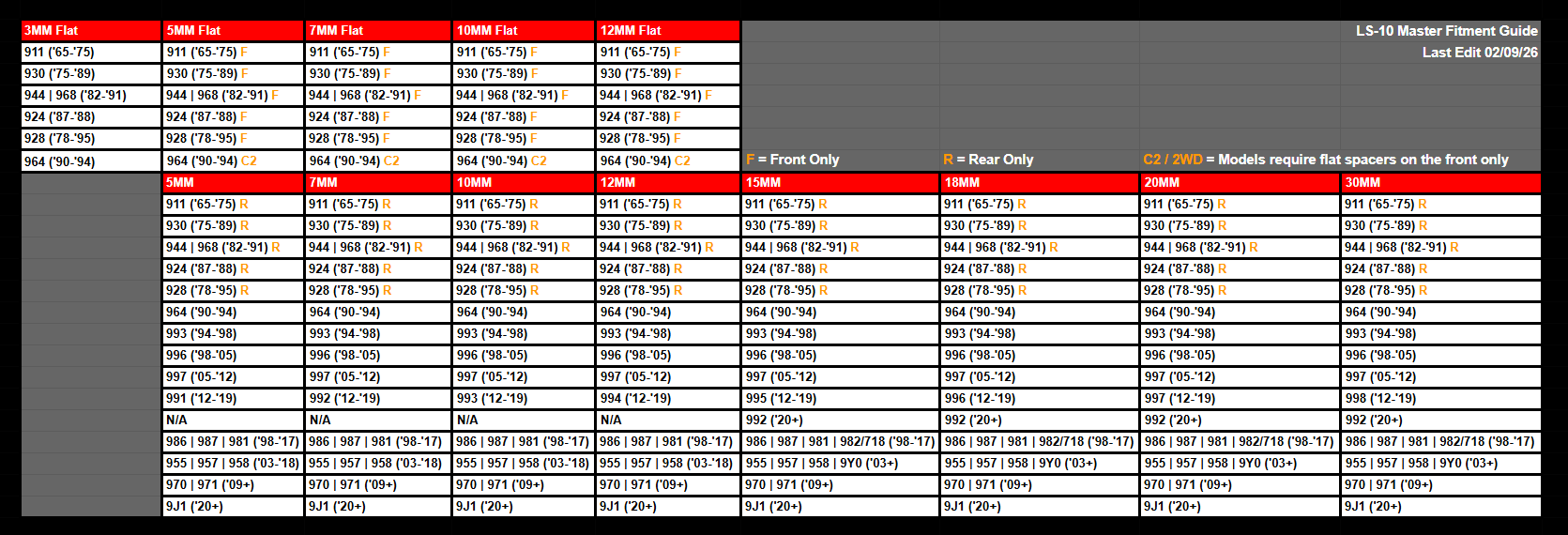

Fitment Guide

TECHNICAL SPECIFICATIONS & FITMENT GUIDE

"Flat" Series | Sizes: 3mm - 12mm

• Design: Perfectly flat face with no protruding hub-centric lip.
• Required For:
  • Early Front Hubs: 911 (1965-1989), 930, 944, 928, 924S | Transitional Front Hubs: 964 & 993 (C2 / 2WD Models).
• Why? These hubs feature a large grease cap or protruding snout that sticks out past the rotor hat. A standard hub-centric spacer would not fit. The "Flat" design allows the factory hub to pass through the spacer to center the wheel safely.

"3-Tab" Series | Sizes: 5mm - 12mm

• Design: Features a hub-centric lip supported by 3 distinct "tabs" on the front.
• Required For:
  • Modern Hubs:
  • 911 Series: 996, 997, 991, 992 (15mm+) | Boxster/Cayman: 986, 987, 981, 982/718 (15mm+) | SUVs/Sedans: Panamera, Cayenne (Pre-2019), Taycan.
  • Select late model Porsches employ a "5-Tab" hub design and require a 5 Tab spacer for sizes below 15mm, see LS24: 992 | 982/718 (refer to LS24 fitment) | 9Y0 Cayenne
• Why? These modern hubs use a "3-tab" design on the snout. Our spacers interlock with these factory tabs to extend the hub lip, ensuring your wheel stays perfectly centered and vibration-free.
• Special Note for 964/993 C4 (AWD): Many C4 all-wheel-drive models feature a front hub that accepts this 3-Tab style. However, you MUST visually verify your hub has the 3 locking slots before ordering. If your hub is round/smooth, you must use the Flat style.

"Universal" Series | Sizes: 15mm - 30mm

• Design: Full solid hub-centric lip extension.
• Required For: ALL Porsche 5x130 hubs (Early and Late models).
• Why? At 15mm+ thickness, the spacer is thick enough to completely swallow the factory hub snout (whether it is 3-tab, round, or has a grease cap). This allows us to machine a fresh 71.6mm lip on the spacer itself, making it compatible with all generations.

Notes

IMPORTANT FITMENT NOTES

• Macan: These spacers do NOT fit the Porsche Macan (5x112 Bolt Pattern). For Macan fitment, please see:
  • Macan Spacer + Bolt Kit (SKU: LS28) – Complete kit with hardware
  • Macan Spacers Only (SKU: LS23) – Spacers only
• Center Lock: These spacers are for 5-Lug vehicles only. They are NOT compatible with Center Lock wheels
• Clean Surface: Hubs must be cleaned of all rust and debris before installation to ensure the spacer sits perfectly flush.
